| Technical Specifications (技术参数) | |
|---|---|
| Moulding Width (min to max) | ¼” up to 5 1/8” (6-130 mm) |
| Moulding Height (min to max) | ¼” up to 3 ¼” (6-80 mm) |
| Max Distance Between V-Nails (stroke) | 7” (180 mm) |
| Pre-set V-Nail Position Stops | Multiple |
| V-Nail Sizes | 5, 7, 10, 12, 15 mm (SW-HW-HDF) |
| V-Nail Channel Capacity | 220 V-Nails/channel |

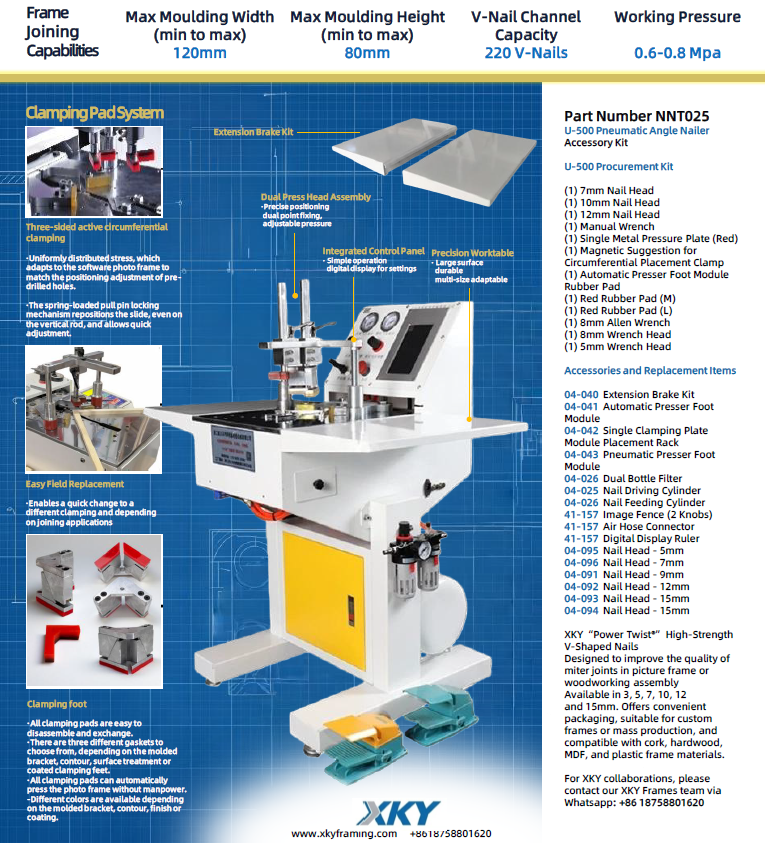

| Purchase Package (标准配件清单) | |
|---|---|
| (1) | 7mm Nail Head |
| (1) | 10mm Nail Head |
| (1) | 12mm Nail Head |
| (1) | Manual Wrench |
| (1) | Single Metal Pressure Plate (Red) |
| (1) | Magnetic Suggestion for Circumferential Placement Clamp |
| (1) | Automatic Presser Foot Module Rubber Pad |
| (1) | Red Rubber Pad (M) |
| (1) | Red Rubber Pad (L) |
| (1) | 8mm Allen Wrench |
| (1) | 8mm Wrench Head |
| (1) | 5mm Wrench Head |
| Replacement Parts & Accessories (配件及耗材) | |
|---|---|
| P/N | Description |
| 04-040 | Extension Brake Kit |
| 04-041 | Automatic Presser Foot Module |
| 04-042 | Single Clamping Plate Module Placement Rack |
| 04-043 | Pneumatic Presser Foot Module |
| 04-026 | Dual Bottle Filter |
| 04-025 | Nail Driving Cylinder |
| 04-026 | Nail Feeding Cylinder |
| 41-157 | Image Fence (2 Knobs) |
| 41-157 | Air Hose Connector |
| 41-157 | Digital Display Ruler |
| 04-095 | Nail Head - 5mm |
| 04-096 | Nail Head - 7mm |
| 04-091 | Nail Head - 9mm |
| 04-092 | Nail Head - 12mm |
| 04-093 | Nail Head - 15mm |
| 04-094 | Nail Head - 15mm |
| Working pressure: | 0.6-0.8MPA |
| Maximum processing width: | 110mm |
| Maximum processing thickness: | 115mm |
| Maximum processing length: | unlimited |
| Applicable nail type: | 7/10/12/15 |
| Dimensions: | 725*740*1170mm |
| Weight: | 90kg |
| Scope of application: | Solid wood, PS foam, MDF, decorative lines |
