6229 Black Spiked Frame Hinge 14x27mm barbed snap-fit picture frame assembly hardware

T06-6229 Black Spiked Frame Hinge

SKU: T06

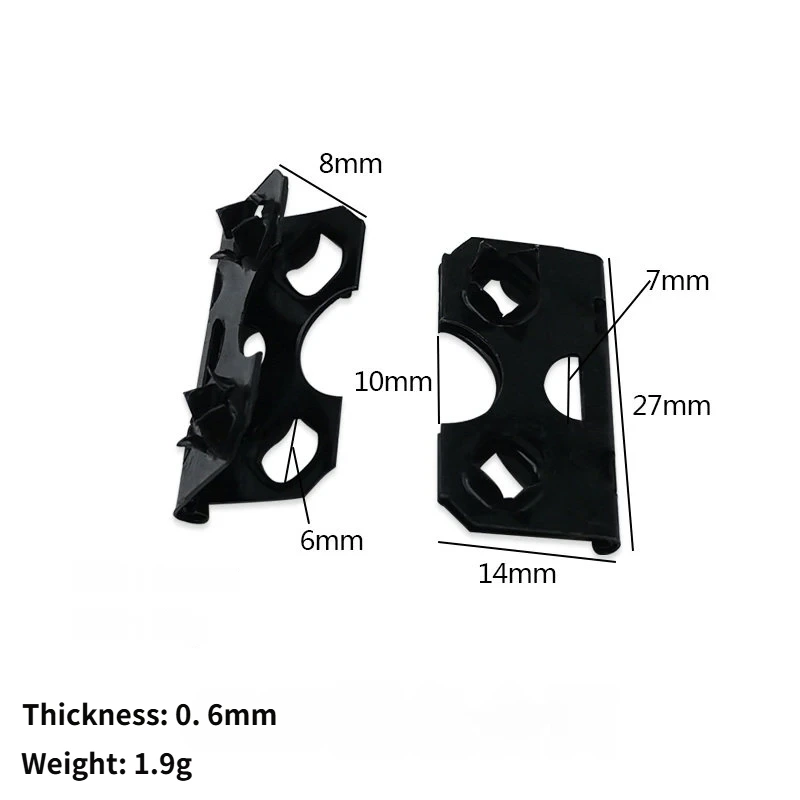

Key Specs

Overall Width: 14mm
Overall Height: 27mm
Spike Depth: 6mm
Hole Diameter: 10mm
Material Thickness: 0.6mm
Weight: 1.9g
Spike Tabs per Leaf: 4
Finish: Matte Black

Request a Quote

MOQ: 100•Lead time: 7-10days•Custom packaging: Available

The 6229 Black Spiked Frame Hinge features aggressive barbed spike tabs that penetrate picture frame moulding edges during assembly, forming an instant mechanical join without adhesive or screws. Weighing 1.9g with a 14×27mm footprint, it is optimised for high-speed picture frame production lines.

Specification	Value
Overall Width	14mm
Overall Height	27mm
Spike Depth	6mm
Hole Diameter	Hole Diameter
Material Thickness	0.6mm
Weight	1.9g
Spike Tabs per Leaf	4
Finish	Matte Black

How does the 6229 hinge differ from the 6220 clip hinge?

The 6229 uses longer, more aggressive spike tabs for deeper penetration into frame moulding (up to 6mm depth), making it stronger and better suited for picture frames. The 6220 is for thin panels only.

Can the 6229 Black Spiked Frame Hinge be used on hardwood frames?

For hardwood mouldings above 600 Janka, pre-score spike contact points with a chisel to ensure full seating. Softwood and MDF require no preparation.

Is a silver version of the 6229 available?

Yes, the 6229 Silver Hinge (T07) is available with identical mechanical specifications in a bright zinc silver finish.

6229 Black Spiked Frame Hinge – Rapid Snap-Fit Picture Frame Hardware

The 6229 Black Spiked Frame Hinge is purpose-built for picture frame manufacturers who need fast, reliable corner or mid-edge joining without screws or clamps. The barbed spike tabs penetrate frame moulding with a single press, locking the two panels together in under two seconds per hinge.

Spike Tab Technology

Eight directional barbed tabs (four per leaf) are stamped at opposing angles to prevent pull-out in both axial and lateral directions. Once seated, the 6229 Black Spiked Frame Hinge withstands over 50N pull-out force per leaf in standard 18mm MDF moulding.

Specifications

Installation Process

Place both panels face-down on a flat surface. Position the hinge over the joint, ensure spikes are aligned with the moulding edge, then strike the hinge body once with a rubber mallet. Inspect that all spike tabs are fully seated before releasing.

Applications

High-volume picture frame joining, canvas stretcher bar assembly, MDF panel partitioning, display cabinet back-panel attachment, and lightweight door-stop hardware.

Comparing 6229 Black and Silver Variants

The 6229 is available in both black (T06) and silver (T07) finishes. Choose black for dark-toned or walnut frames; silver for natural wood or white-painted frames. Both variants share identical mechanical specifications.
