Product Overview: Revolutionize Your Production Line

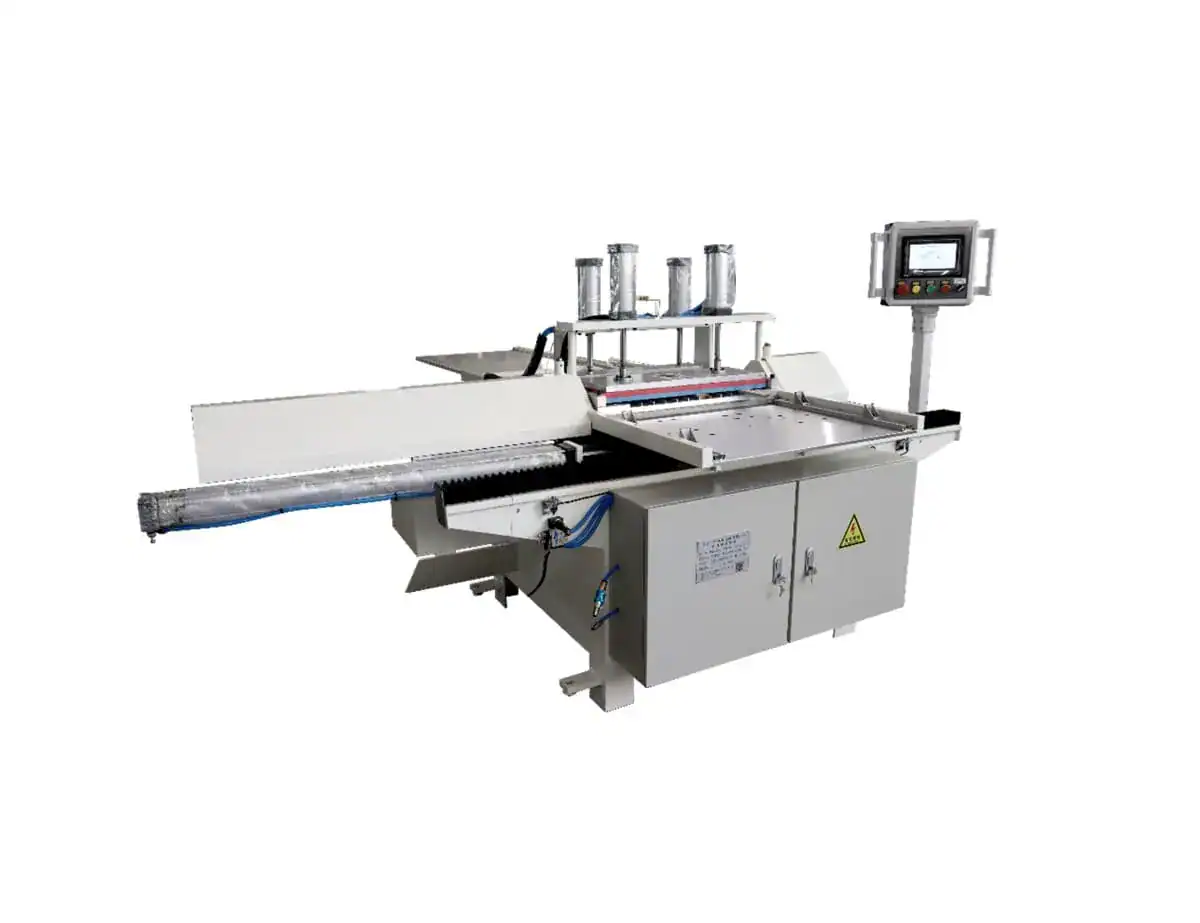

The NC500 Double Miter Saw is not just a cutting tool; it is a fully automated production center. Designed to replace manual cutting stations, it integrates auto-feeding, clamping, positioning, and cutting into one seamless workflow. Whether you are manufacturing photo frames, mirror frames, or cabinet doors, the NC500 ensures every cut is identical, significantly reducing assembly gaps.
Core Features & Technical Advantages
01. High-Capacity “Stack Cutting” Technology
Unlike traditional saws that cut one piece at a time, the NC500 uses specialized clamping molds to hold multiple strips. You can cut 10 to 30 frame strips simultaneously in one pass, boosting your factory’s efficiency by 300% to 500%.
Unlike traditional saws that cut one piece at a time, the NC500 uses specialized clamping molds to hold multiple strips. You can cut 10 to 30 frame strips simultaneously in one pass, boosting your factory’s efficiency by 300% to 500%.
02. Dual-Blade Bidirectional Sawing
Equipped with two powerful 3KW motors, the machine performs bi-directional cutting. This unique motion, combined with dual blades, allows for complex profile shaping and ensures smooth edges with waste levels below 2%.
Equipped with two powerful 3KW motors, the machine performs bi-directional cutting. This unique motion, combined with dual blades, allows for complex profile shaping and ensures smooth edges with waste levels below 2%.
03. Smart Speed Adjustment
Different materials require different cutting speeds. The NC500 features intelligent variable speed control (2500-3800 r/min), making it perfectly compatible with solid wood, aluminum alloy, PVC, and high-density MDF without needing to change machines.
Different materials require different cutting speeds. The NC500 features intelligent variable speed control (2500-3800 r/min), making it perfectly compatible with solid wood, aluminum alloy, PVC, and high-density MDF without needing to change machines.
04. Safety-Optimized Design (CE Certified)
Safety is paramount in industrial environments. The NC500 utilizes a fully enclosed downward blade motion, which not only eliminates corner chipping but also keeps dust contained. The system is fully CE certified for safety compliance.
Safety is paramount in industrial environments. The NC500 utilizes a fully enclosed downward blade motion, which not only eliminates corner chipping but also keeps dust contained. The system is fully CE certified for safety compliance.
05. Three Operational Modes
Flexibility for any order size. Choose from Manual, Semi-Auto, or Fully Auto modes via the intuitive PLC touchscreen interface. Zero extensive training is required for operators.
Flexibility for any order size. Choose from Manual, Semi-Auto, or Fully Auto modes via the intuitive PLC touchscreen interface. Zero extensive training is required for operators.
Technical Specifications
| Model | SL-NC500 (Auto Stack Cutter) |
|---|---|
| Machine Type | Automatic Double Miter Saw |
| Spindle Speed | 2500 – 3800 r/min (Variable) |
| Cutting Range (LxW) | 550mm × 47mm |
| Saw Blade Motor | 3 kW × 2 (Dual Motor) |
| Total Power | 7.58 kW |
| Air Pressure | 0.6 – 0.8 MPa |
| Voltage | 380V / 50HZ |
| Blade Shaft Diameter | 30mm / 25.4mm |
| Machine Dimensions | 1625 × 1930 × 1330 mm (approx.) |
| Net Weight | 1050 kg |
Frequently Asked Questions (FAQ)
Q: What is the advantage of a “Double Miter Saw” like the NC500?
A: A double miter saw cuts two 45° angles at the same time (or in one coordinated motion). This ensures that the two ends of your frame segment are perfectly parallel and matched, which is critical for joining a perfect square frame.
A: A double miter saw cuts two 45° angles at the same time (or in one coordinated motion). This ensures that the two ends of your frame segment are perfectly parallel and matched, which is critical for joining a perfect square frame.
Q: Can it cut Aluminium frames?
A: Yes. The NC500 is designed with “All-Material Compatibility”. It effectively cuts aluminum alloy profiles, as well as wood and PVC, thanks to its robust motors and adjustable cutting speeds.
A: Yes. The NC500 is designed with “All-Material Compatibility”. It effectively cuts aluminum alloy profiles, as well as wood and PVC, thanks to its robust motors and adjustable cutting speeds.
Q: How does the “Stack Cutting” work?
A: We provide mold fixtures that match your profile shape. You stack the mouldings vertically or horizontally into the fixture, and the machine clamps them all together. The blade then cuts through the entire stack at once, producing dozens of segments in seconds.
A: We provide mold fixtures that match your profile shape. You stack the mouldings vertically or horizontally into the fixture, and the machine clamps them all together. The blade then cuts through the entire stack at once, producing dozens of segments in seconds.
