The heaviest-gauge horizontal concealed hanger in the silver range at 1 mm thick and 20 kg rated – engineered for large, heavy mirrors, shelving, and commercial display applications.
The heaviest-gauge horizontal concealed hanger in the silver range at 1 mm thick and 20 kg rated – engineered for large, heavy mirrors, shelving, and commercial display applications.

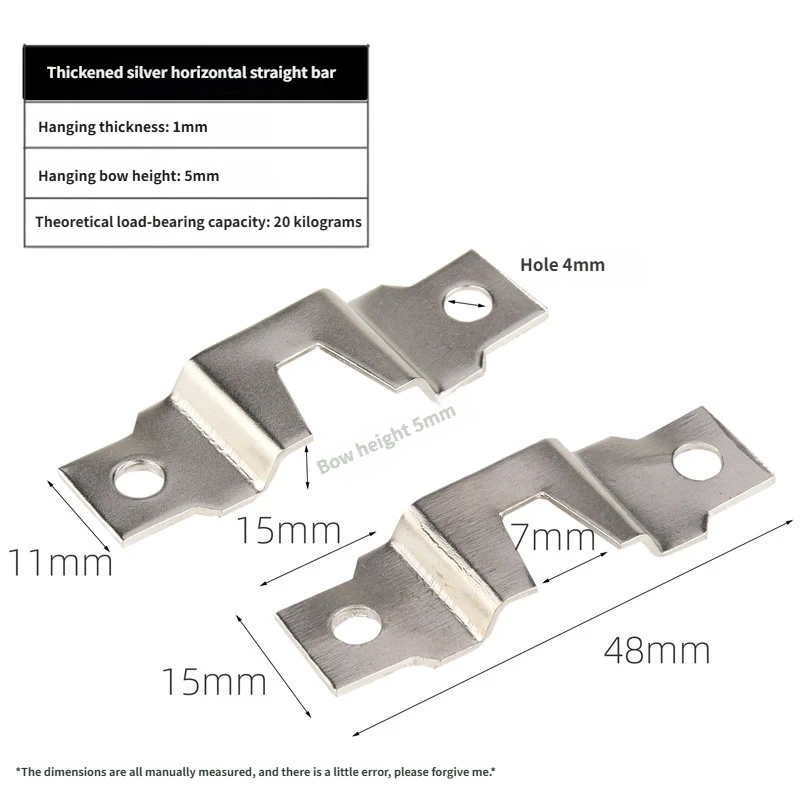

| Specification | Value |
|---|---|
| thickness | 1.0 |
| weight | ~7 (pair est.) |
| over all length | 48 |
| over all width | 11 |
| bow/arch height | 5 |
| key hole slot length | 15 |
| key hole slot width | 7 |
| screw hole diameter | 4 |
| no.of screw holes | 2 |
| max load capacity | 20 |
| color | Silver |
The 43% increase in steel gauge significantly increases the hanger's resistance to bending and deformation under load, raising the practical load limit by approximately 33%.
O11 is 0.3 mm thicker, rated 5 kg higher (20 vs 15 kg), and has slightly different tab geometry; O01 is lighter and more suitable for standard picture frames.
Yes – with stainless screws, the 1 mm steel handles moisture well in the short-to-medium term; for long-term humid environments, prefer stainless steel models O07–O09.
