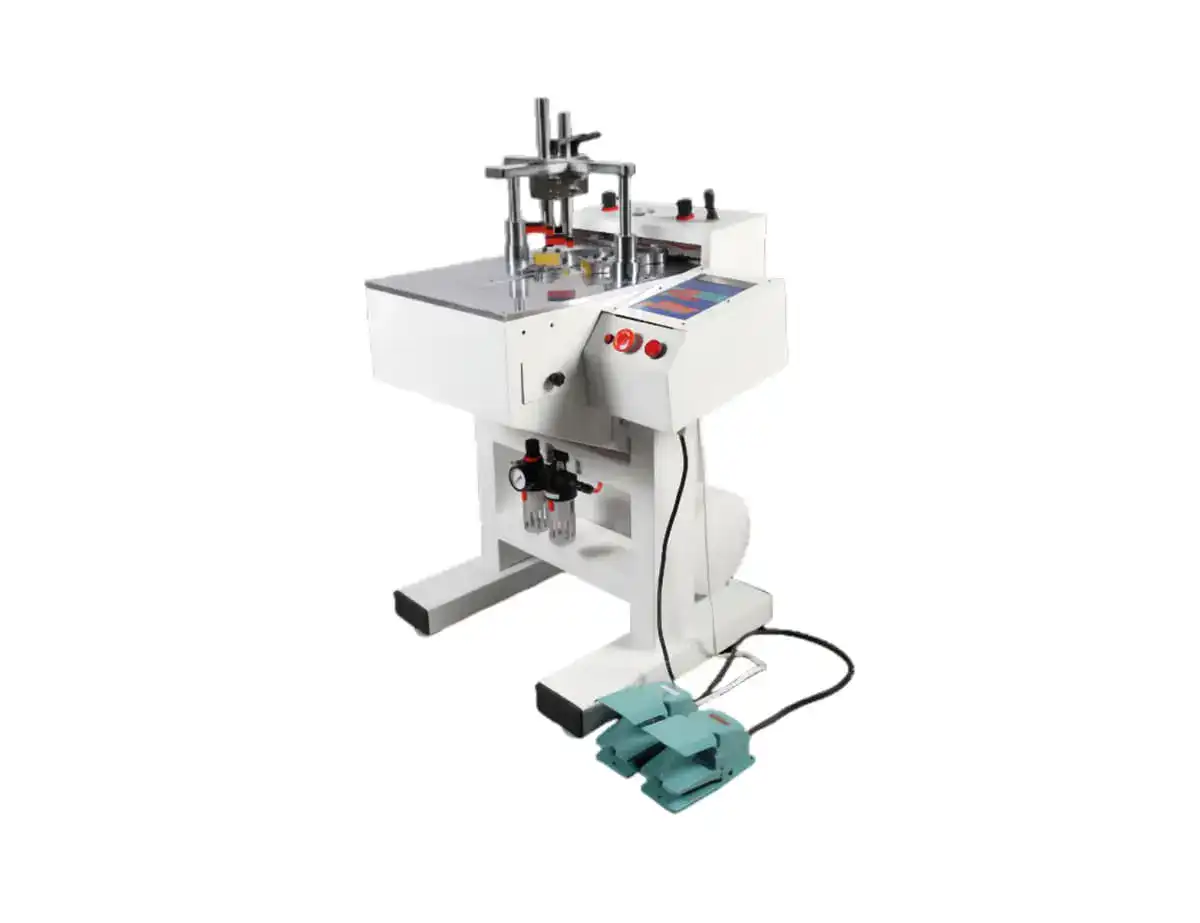

Product Overview: ST-NN600
The ST-NN600 (Plate Clamping) is engineered for precision frame joining. Featuring an advanced table-mounted plate clamping mechanism and 9-stage CNC programming, it delivers superior stability and prevents kickback during nailing, making it ideal for wider profiles and delicate materials.
Core Features: Precision with NN600 Plate Clamping
- Advanced Plate Clamping Technology
The NN600 distinguishes itself with a table-mounted clamping mechanism. It automatically grips the frame moulding from the sides/base during the cycle. This prevents the “kickback” or shifting that can occur with traditional top-clamping machines. - Dual-Gear Stability
Equipped with a “Dual-Gear” holding system, it ensures absolute stability for joining wider or slippery profile materials. - 9-Stage CNC Programming
Driven by a sophisticated nine-stage CNC system, the machine can execute complex nailing patterns (5-nail stacking + 9 positions) in a single pass, boosting efficiency by 40%. - Universal Material Fit
Whether it’s solid wood, high-density MDF, foam, or plaster moulding, the adjustable plate clamps adapt to various densities without leaving pressure marks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ST-NN600 (Plate Clamping) |
| Machine Type | CNC Underpinner / Frame Joiner |
| Clamping Method | Plate Clamping (Side/Base Grip) |
| Max Frame Width | 130mm (13cm) |
| Max Frame Thickness | 100mm (10cm) |
| V-Nail Sizes | 5mm, 7mm, 10mm, 12mm, 15mm |
| Air Pressure | 6-8 kg/cm² (90-120 psi) |
| Joining Angles | 90°, 120°, 135° |
Frequently Asked Questions (FAQ)
Q: What is the advantage of “Plate Clamping” (NN600) over “Active Clamping” (NN400/500)?
A: Active Clamping presses from the top, which is great for general framing. Plate Clamping (NN600) holds the frame from the table level. This is superior for preventing the two pieces of moulding from sliding apart horizontally when the V-nail is driven in.
A: Active Clamping presses from the top, which is great for general framing. Plate Clamping (NN600) holds the frame from the table level. This is superior for preventing the two pieces of moulding from sliding apart horizontally when the V-nail is driven in.
Q: Can I save my frame settings?
A: Yes, the NN600 features an Intelligent CNC System that allows you to start efficient operation with one button. You can switch between different frame jobs instantly.
A: Yes, the NN600 features an Intelligent CNC System that allows you to start efficient operation with one button. You can switch between different frame jobs instantly.
Q: Is this machine suitable for delicate frames?
A: Absolutely. The plate clamping system distributes pressure evenly, making it less likely to dent or damage delicate frame surfaces compared to heavy top-down pistons.
A: Absolutely. The plate clamping system distributes pressure evenly, making it less likely to dent or damage delicate frame surfaces compared to heavy top-down pistons.
