Perfect for medium-sized frames, the small golden fish bone provides multiple serrated points. This guarantees the frame stays perfectly level holding up to 10Kg.
Perfect for medium-sized frames, the small golden fish bone provides multiple serrated points. This guarantees the frame stays perfectly level holding up to 10Kg.

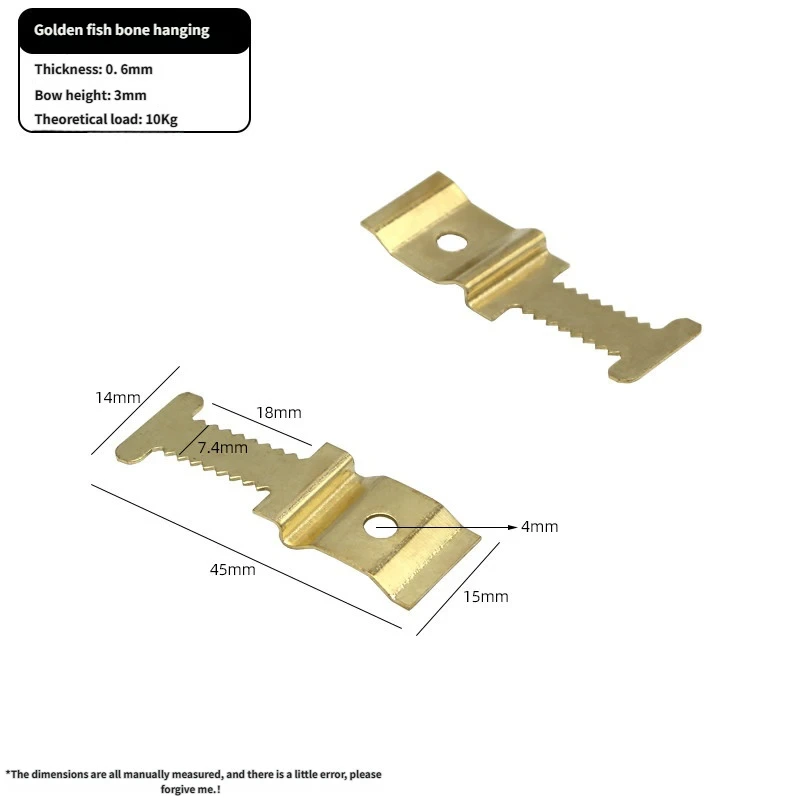

| Specification | Value |
|---|---|
| thickness | 0.6 |
| weight | ~2 |
| over all length | 45 |
| over all width height | 15 |
| bow/arch height | 3 |
| slot tooth length | 18 |
| slot tooth height | 7.4 |
| screw hole diameter | oval ~4 |
| screw hole spacing | N/A (single) |
| material finish | Cold-rolled steel, gold-tone plated |
| color | Gold |
N36 has one screw hole (vs two), a lower 3 mm bow (vs 5 mm), a smaller 10 kg rating, and a narrower sawtooth head for lighter duty applications.
For frames under 5 kg, a single screw into solid wood backing is adequate; for heavier frames, use two N36 plates.
Yes – the symmetrical fish-bone head engages nails in any orientation; ensure the mounting plate screws are fully tightened in both orientations.
