The widest and most anchor-point-rich concealed hanger in the XKY range – six holes across 96 mm provide exceptional lateral stability and load distribution for the heaviest frames, mirrors, and shelving units.
The widest and most anchor-point-rich concealed hanger in the XKY range – six holes across 96 mm provide exceptional lateral stability and load distribution for the heaviest frames, mirrors, and shelving units.

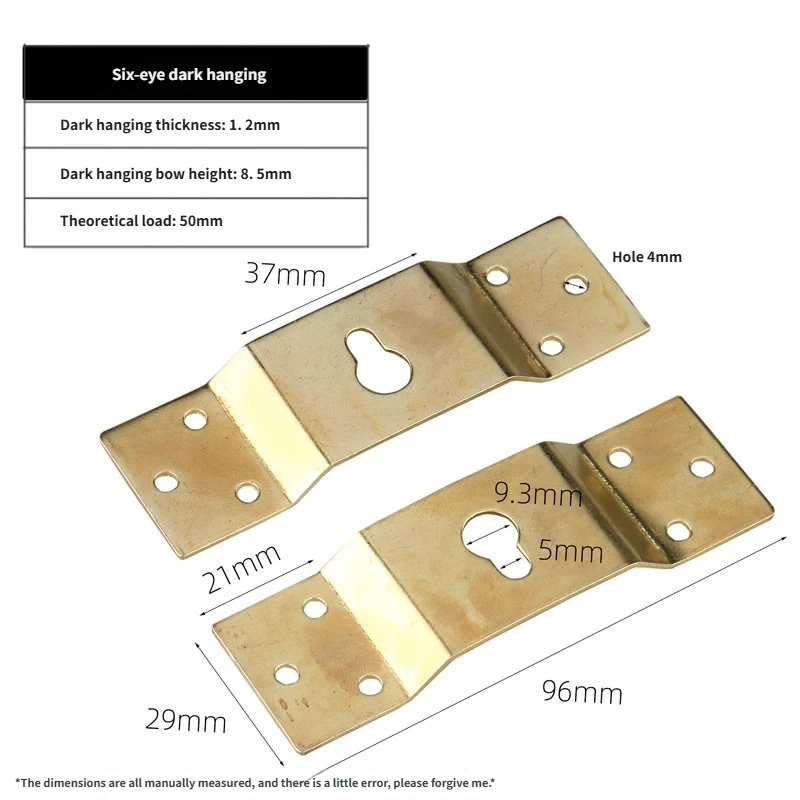

| Specification | Value |
|---|---|
| thickness | 1.2 |
| weight | ~18 (pair est.) |
| over all length | 96 |
| over all width | 29 |
| bow/arch height | 8.5 |
| key hole slot length | 9.3 |
| key hole slot width | 5 |
| screw hole diameter | 4 |
| no.of screw holes | 6 |
| max load capacity | 50 |
| color | Gold |
Six holes spread the load across three screw points per side, reducing stress per anchor by 50% compared to two-hole designs – critical for loads above 20 kg to prevent wall-anchor failure.
The hanger requires a frame back at least 100 mm wide; it is best suited for large picture frames, wide shelves, and display panels with substantial backing.
Yes – the frame will stand approximately 9 mm from the wall; this is acceptable for most applications but visible from the side on very thin frames. Use spacers if a closer gap is required.
