0.8mm PVC Coated 7×7 Stainless Steel Wire Rope – Complete Product Guide
The 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope is the go-to cable solution for professional framers, interior designers, and DIY enthusiasts who demand reliable, long-lasting performance. Manufactured from grade 304 stainless steel, this 0.8mm cable delivering the ideal balance of rigidity and flexibility for picture hanging.

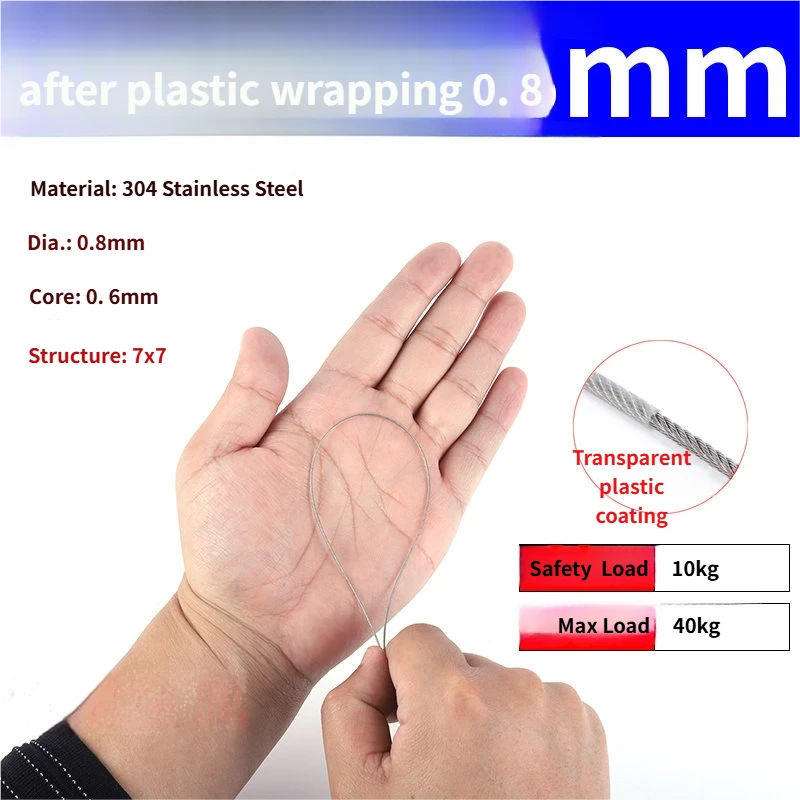

Key Specifications of the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope
Every metre of the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope is constructed to exacting tolerances. The 7×7 strand pattern consists of 7 bundles, each containing 7 individual wires, resulting in a smooth, kink-resistant cable that feeds cleanly through picture rail hooks and cable clips. The 0.8mm diameter sits inside standard 0.8mm crimp sleeves without modification.
Load Ratings You Can Trust
The 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope carries a safe working load of 10kg and a certified maximum breaking load of 40kg. These figures are calculated conservatively to ensure a generous safety factor — a critical requirement for suspended displays in public venues.
Unlike bare steel cables, this 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope features a crystal-clear PVC jacket over a 0.6mm inner core. The coating prevents moisture ingress, resists minor impacts, and protects adjacent surfaces — an ideal choice for high-traffic gallery walls and retail fixture installations.
Applications for the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope
This cable excels across a wide range of hanging and support applications:
- Picture rail and gallery wall systems
- Cable trellis and plant support in garden rooms
- Suspended signage and retail display fixtures
- Architectural cable railings on staircases and balconies
- Boat rigging and marine hardware where corrosion resistance matters
Why Choose 304 Stainless Steel?
304 stainless steel contains 18% chromium and 8% nickel, creating a passive oxide layer that resists rust even in humid or coastal environments. Compared to galvanised mild steel, the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope shows no white rust after extended exposure to moisture — keeping your installation looking pristine for years.
Installation Tips for the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope
Pair this cable with aluminium ferrule crimp sleeves of the matching 0.8mm bore size. Use a dedicated ratchet crimping tool for secure, professional terminations. Avoid bending the cable at angles sharper than 10× the wire diameter to preserve the rated break load. When routing through pulleys or cable guides, ensure the sheave groove diameter matches the 0.8mm outer diameter of the cable.
Frequently Asked Questions
Can the 0.8mm PVC Coated 7×7 Stainless Steel Wire Rope be cut to custom lengths?
Yes. Use aviation snips or a rotary cutting wheel for clean ends. Apply a small dab of clear adhesive to prevent strand fraying immediately after cutting.
Is this cable suitable for outdoor use?
Absolutely. Grade 304 stainless steel performs well in most outdoor environments. For coastal or heavily chlorinated environments, consider upgrading to 316 stainless steel.
What connectors are compatible?
Standard 0.8mm aluminium crimp ferrules, wire rope clamps, and swage-style end fittings all fit without modification.
