A matching pair of Z-profile horizontal concealed hangers that interlock to create a completely invisible wall mount, ideal for mirrors, shelves, and framed art requiring a flush, hardware-free appearance.
A matching pair of Z-profile horizontal concealed hangers that interlock to create a completely invisible wall mount, ideal for mirrors, shelves, and framed art requiring a flush, hardware-free appearance.

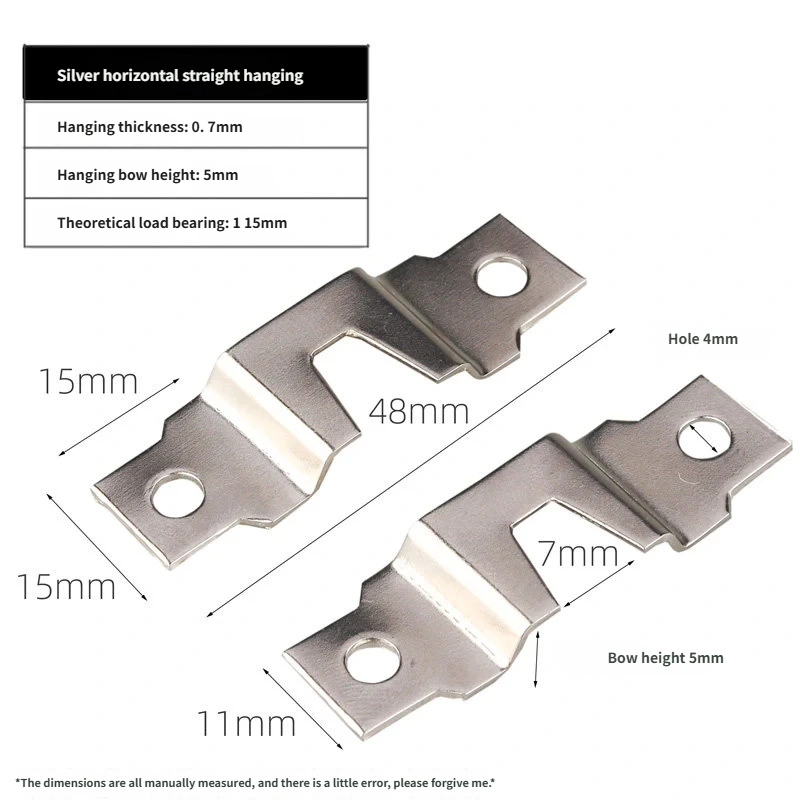

| Specification | Value |
|---|---|
| thickness | 0.7 |
| weight | ~5 (pair est.) |
| over all length | 48 |
| over all width | 15 |
| bow/arch height | 5 |
| key hole slot length | 11 |
| key hole slot width | 7 |
| screw hole diameter | 4 |
| no.of screw holes | 2 |
| max load capacity | 15 |
| color | Silver |
One piece mounts to the wall, the other to the frame back. The two Z-profiles interlock by sliding the frame piece down onto the wall piece, locking together invisibly.
It is sold as a pair (one wall-mount piece and one frame-mount piece); both are required for one complete hanging installation.
Use M4 or #8 pan-head wood screws; for drywall installations, use M4 wall anchors rated at least 20 kg each.
A matching pair of Z-profile horizontal concealed hangers that interlock to create a completely invisible wall mount, ideal for mirrors, shelves, and framed art requiring a flush, hardware-free appearance.
