Product Overview

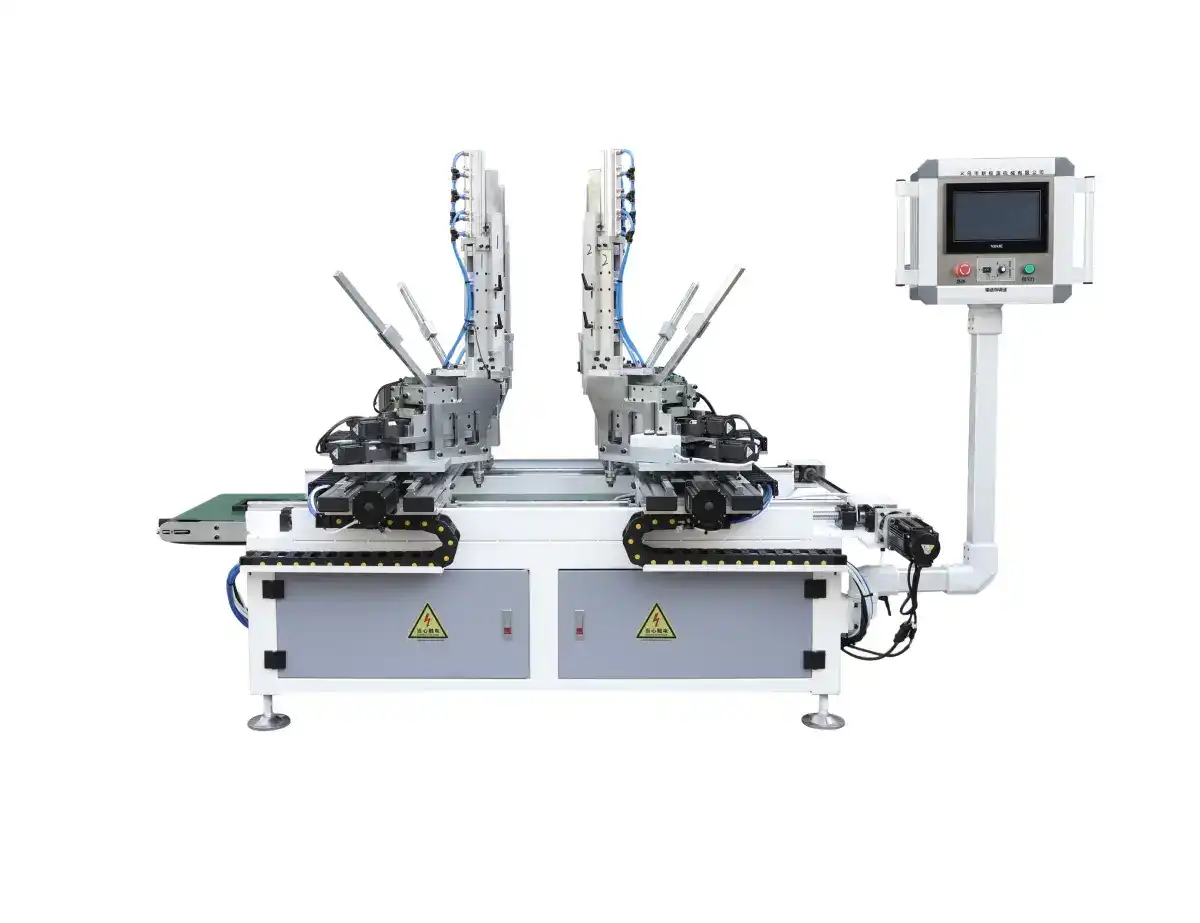

The SL-NN300 Quad-Angle Automatic Nailer is the ultimate solution for high-volume frame assembly. Designed for batch production, it features a specialized PLC system that allows for simultaneous 4-corner nailing. With a hopper capacity of 10+ strips and auto-conveyor discharge, it boosts production efficiency by 300% while reducing labor costs by 60%.
Key Features
01. Quad-Angle Simultaneous Nailing
Unlike traditional V-nailers that join one corner at a time, the NN300 nails all four corners at the same time. This revolutionary design boosts efficiency by 300% compared to standard machines.
Unlike traditional V-nailers that join one corner at a time, the NN300 nails all four corners at the same time. This revolutionary design boosts efficiency by 300% compared to standard machines.
02. Continuous Auto-Feeding
Equipped with a smart conveyor system, the machine automatically feeds, positions, nails, and discharges the frames. You can load 10+ frame strips at once without stopping the machine.
Equipped with a smart conveyor system, the machine automatically feeds, positions, nails, and discharges the frames. You can load 10+ frame strips at once without stopping the machine.
03. High-Precision PLC Control
Managed by an advanced PLC touchscreen, the assembly accuracy reaches ±0.1mm, ensuring perfectly square corners every time.
Managed by an advanced PLC touchscreen, the assembly accuracy reaches ±0.1mm, ensuring perfectly square corners every time.
04. Versatile V-Nail Compatibility
Supports standard V-nails (7mm, 10mm, 12mm, 15mm) and works with various materials including solid wood, MDF, and foam profiles.
Supports standard V-nails (7mm, 10mm, 12mm, 15mm) and works with various materials including solid wood, MDF, and foam profiles.
Technical Specifications
| Model | SL-NN300 (Auto) |
|---|---|
| Machine Type | Automatic Quad-Angle Underpinner / V-Nailer |
| Production Speed | Approx. 15 frames / minute |
| Frame Size (Max) | 600mm × 800mm |
| Frame Size (Min) | 110mm × 110mm |
| Profile Dimensions | Width: 10-50mm |
| Nail Capacity | 1-4 nails per corner (Stackable) |
| Power Supply | 220V / 3kW |
| Air Pressure | 0.6 – 0.8 MPa |
| Dimensions | 2700 × 1620 × 1670 mm |
Frequently Asked Questions (FAQ)
Q: What is the difference between the NN300 underpinner and a standard V-nailer?
A: A standard V-nailer joins one corner at a time, requiring the operator to rotate the frame. The NN300 Underpinner is a “Quad-Angle” machine that clamps and nails all 4 corners instantly, making it 3-4 times faster for mass production.
A: A standard V-nailer joins one corner at a time, requiring the operator to rotate the frame. The NN300 Underpinner is a “Quad-Angle” machine that clamps and nails all 4 corners instantly, making it 3-4 times faster for mass production.
Q: Does this machine require a skilled operator?
A: No. The NN300 is fully automated. Once the parameters are set on the touchscreen, the operator simply loads the frame strips. The machine handles the feeding, alignment, and nailing automatically.
A: No. The NN300 is fully automated. Once the parameters are set on the touchscreen, the operator simply loads the frame strips. The machine handles the feeding, alignment, and nailing automatically.
Q: What types of V-nails does it use?
A: It is compatible with standard V-nails (Uni-type or specific types depending on the cartridge) in sizes 7mm, 10mm, 12mm, and 15mm.
A: It is compatible with standard V-nails (Uni-type or specific types depending on the cartridge) in sizes 7mm, 10mm, 12mm, and 15mm.
