A 304 stainless steel horizontal concealed hanger offering superior corrosion resistance for bathroom, kitchen, coastal, and outdoor-covered installations where standard steel would rust.
A 304 stainless steel horizontal concealed hanger offering superior corrosion resistance for bathroom, kitchen, coastal, and outdoor-covered installations where standard steel would rust.

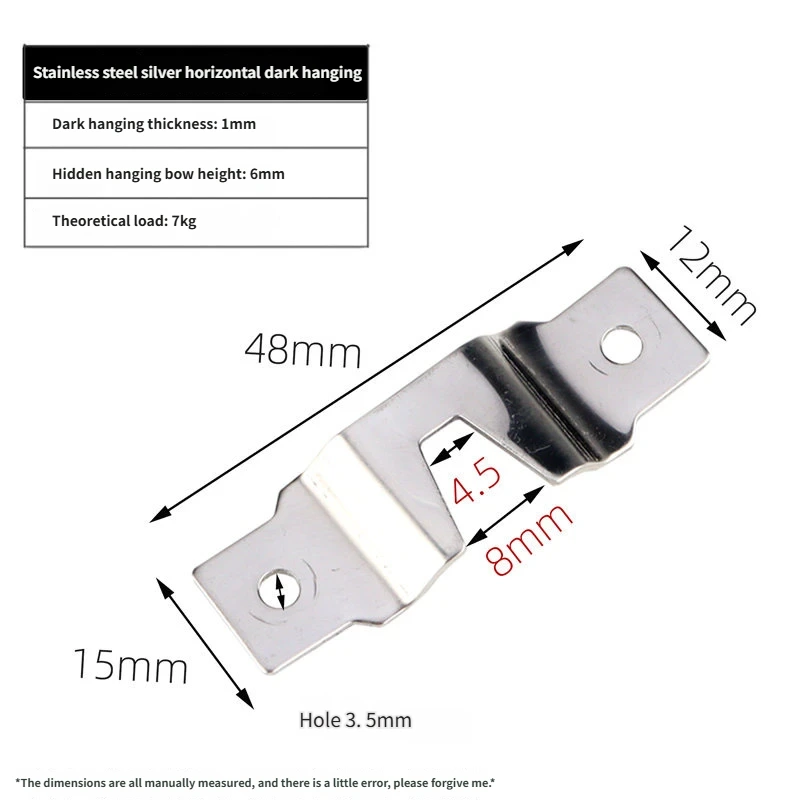

| Specification | Value |
|---|---|
| thickness | 1.0 |
| weight | ~6 (est.) |
| over all length | 48 |
| over all width | 12 |
| bow/arch height | 6 |
| key hole slot length | 8 |
| key hole slot width | 4.5 |
| screw hole diameter | 3.5 |
| no.of screw holes | 2 |
| max load capacity | 7 |
| color | Silver (brushed) |
304 stainless steel is highly resistant to rust, humidity, and salt air – essential for bathrooms, coastal homes, or any humid environment where regular steel hangers would corrode within months.
The 7 kg rating reflects the smaller slot dimensions and single-screw-per-end design; use two O07 pairs for loads up to 14 kg.
The surface is brushed (matte), reducing glare and fingerprint visibility compared to mirror-polished stainless steel.
