A four-hole keyhole concealed hanger providing superior lateral stability vs two-hole designs – ideal for heavy mirrors, shelves, and large picture frames up to 15 kg.
A four-hole keyhole concealed hanger providing superior lateral stability vs two-hole designs – ideal for heavy mirrors, shelves, and large picture frames up to 15 kg.

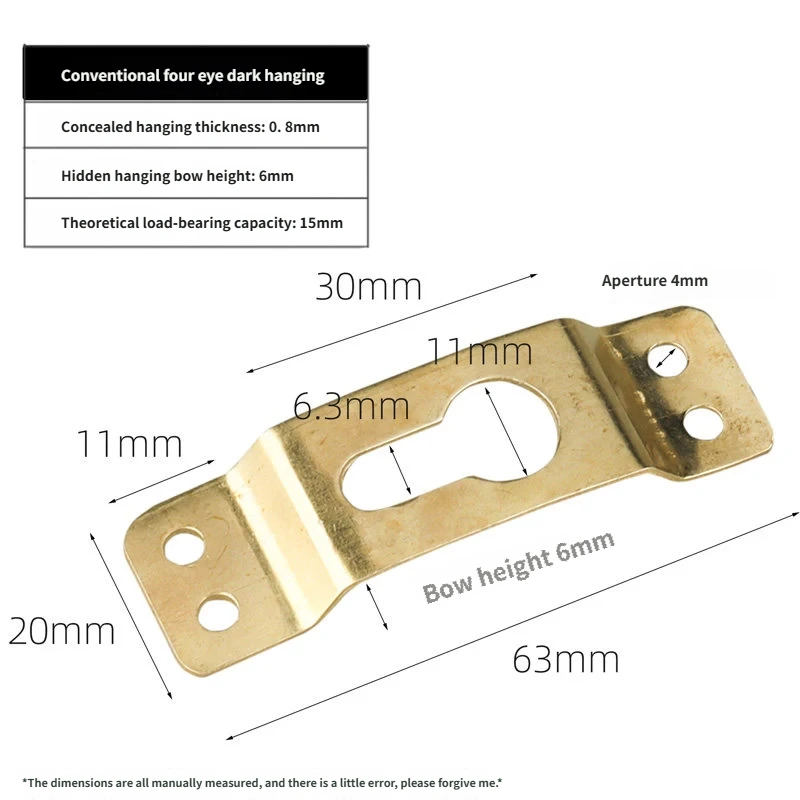

| Specification | Value |
|---|---|
| thickness | 0.8 |
| weight | ~6 (est.) |
| over all length | 63 |
| over all width | 20 |
| bow/arch height | 6 |
| key hole slot length | 11 |
| key hole slot width | 6.3 |
| screw hole diameter | 4 |
| no.of screw holes | 4 |
| max load capacity | 15 |
| color | Gold |
Four mounting holes (two per end) double the screw contact area, significantly reducing the risk of the hanger twisting or pulling out under heavy loads.
Each keyhole has a large round entry (to pass the screw head through) connected to a narrow slot (where the screw shank seats). The frame slides down until the shank seats in the narrow slot, locking it in place.
The 6.3 mm wide keyhole entry accommodates screw heads up to approximately 6 mm in diameter; use M4 pan-head or dome-head screws for best results.
A four-hole keyhole concealed hanger providing superior lateral stability vs two-hole designs – ideal for heavy mirrors, shelves, and large picture frames up to 15 kg.
