The Gold Washer Head Self-Tapping Screw 3x16mm is a professional-grade picture frame fastener manufactured exclusively for the framing industry. Every Gold Washer Head Self-Tapping Screw 3x16mm unit leaving our production line is inspected for dimensional accuracy, ensuring consistent performance across high-volume frame assembly operations.
Product Specifications: Gold Washer Head Self-Tapping Screw 3x16mm

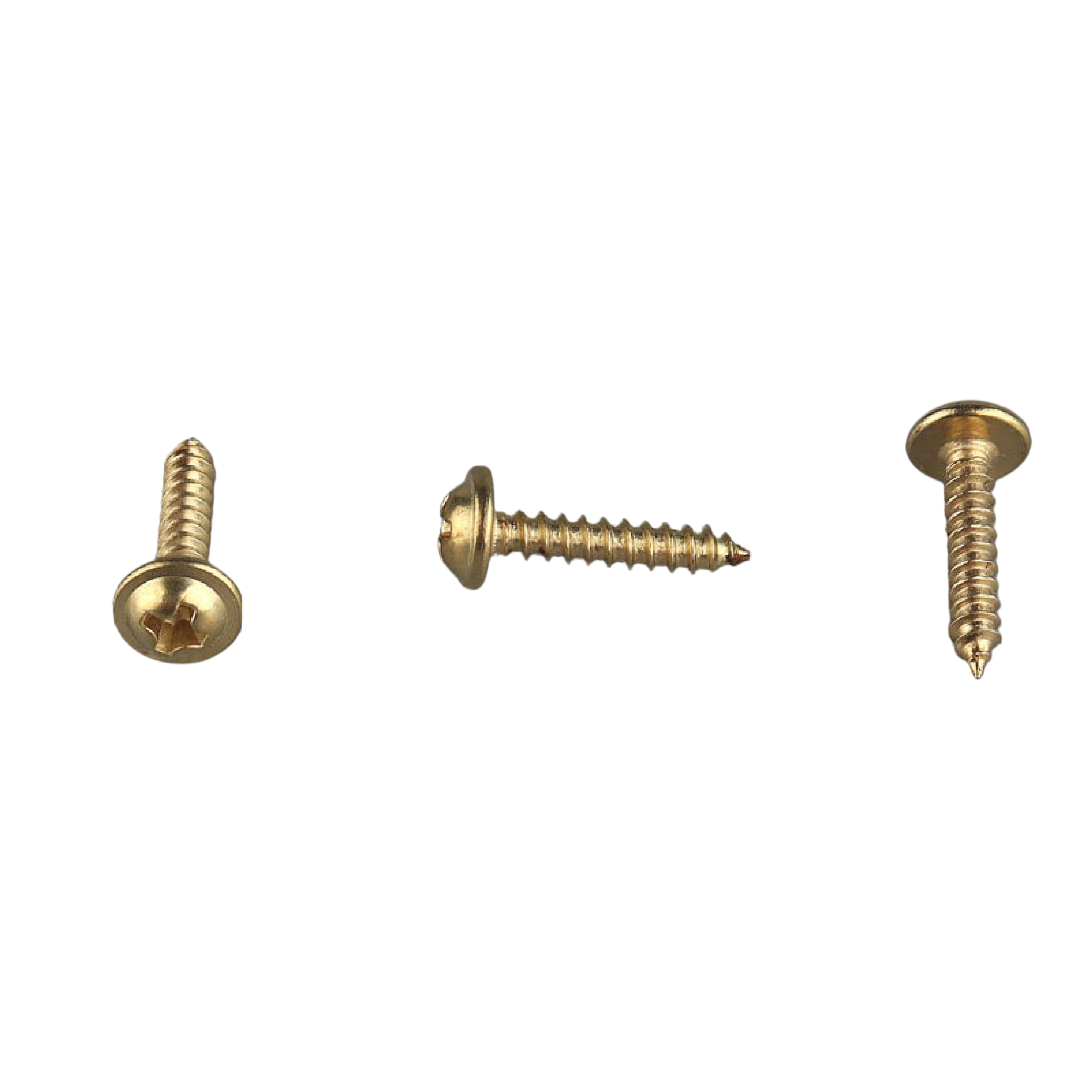

Understanding the exact dimensions of the Gold Washer Head Self-Tapping Screw 3x16mm ensures correct selection for your specific moulding thickness and finish requirements. This fastener features a 3 mm thread diameter, a 16 mm threaded shank length, and a 7 mm Washer Head (带垫) — all finished in gold (Carbon Steel, Gold-plated). It is engineered as a self-tapping screw, eliminating the need for pre-tapped holes in wood and foam board substrates.
Key Technical Parameters
Thread Diameter: 3 mm | Thread Length: 16 mm | Head Diameter: 7 mm | Head Style: Washer Head (带垫) | Drive: Phillips | Material: Carbon Steel, Gold-plated | Finish: Gold | Application: Picture frame industry; wood & foam board only.
Why Choose the Gold Washer Head Self-Tapping Screw 3x16mm for Picture Frame Assembly?
Frame makers worldwide trust the Gold Washer Head Self-Tapping Screw 3x16mm because it combines three critical qualities: dimensional precision, finish consistency, and reliable self-tapping performance. In production environments where hundreds of frames are assembled daily, fastener consistency directly impacts throughput and reject rates. The Gold Washer Head Self-Tapping Screw 3x16mm is designed to meet these demands.
The gold finish is matched to industry-standard frame hardware tones, ensuring your corner fixings blend with the overall frame aesthetic. Whether you are producing a single gallery piece or fulfilling a retail chain order, the Gold Washer Head Self-Tapping Screw 3x16mm delivers the same result every time.
Application Guidelines for the Gold Washer Head Self-Tapping Screw 3x16mm
The Gold Washer Head Self-Tapping Screw 3x16mm is approved for use on wood mouldings and foam board substrates only. It is not suitable for steel, aluminium, or general construction applications. For optimal results, drive at low torque using a Phillips #2 bit. In harder woods, a 2.2 mm pilot hole is recommended to prevent splitting and reduce driving resistance.
Compatibility and Selection Guide
Selecting the correct length is critical for joint strength. The 16 mm thread length is best matched to moulding wall thicknesses of 12–18 mm. For thinner mouldings, consider the shorter variants in the same series; for thicker frames, the longer options are available in the XKY Framing catalogue.
Visit our related framing screws page to explore compatible variants. For industry standards and fastener specifications, the ISO fastener standards portal provides authoritative reference material.
Ordering and Availability
The Gold Washer Head Self-Tapping Screw 3x16mm (SKU: V05) is stocked as a standard product. Bulk packaging is available for high-volume frame manufacturers. Contact XKY Framing customer service for volume pricing and lead times. All orders are subject to our standard framing hardware quality guarantee.
Frequently Asked Questions About the Gold Washer Head Self-Tapping Screw 3x16mm
Q: When should I choose 16mm over 14mm?
A: Select 16mm when joining mouldings with a combined wall thickness of 13–16mm, such as premium hardwood gallery or shadow-box frames.
Q: Does the longer screw require a pilot hole in hardwood?
A: A 2–2.5mm pilot hole is strongly recommended for 16mm screws in dense hardwood to avoid splitting and reduce driving torque.
Q: Is there a stainless steel version available?
A: This product is carbon steel with gold plating, suited for indoor framing. Contact XKY Framing customer service for specialist material options.
