Silver Three-Hole D-Ring Hanger 20kg K13 – 63mm
Silver Three-Hole D-Ring Hanger 20kg K13 – 63mm

K13-Silver Three-Hole D-Ring Hanger 20kg Picture Frame

SKU: K13
Key Specs
Plate Thickness
Ring Wire Diameter
Ring Wire Diameter
2.3 mm
Load Capacity
20 kg
Total Length
63 mm
Plate Width
39 mm
Plate Height
15 mm
Ring Height
22 mm
Screw Hole Diameter
N/A (estimated ~4.5mm)
Number of Screw Holes
3
MOQ: 100Lead time: 7-10daysCustom packaging: Available

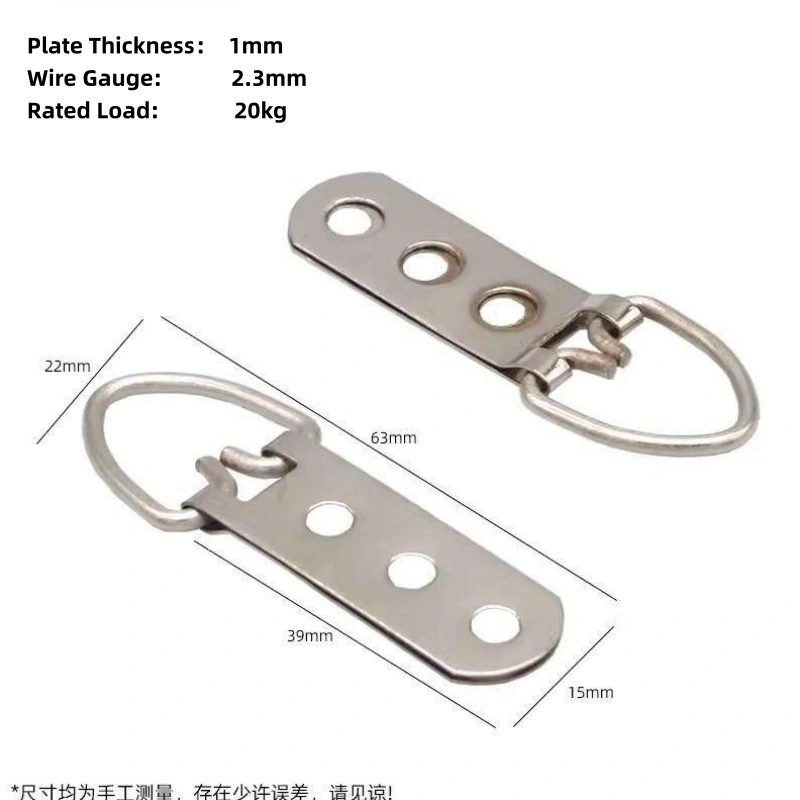

The K13 Silver Three-Hole D-Ring Hanger is the nickel-plated version of K12, sharing identical 63mm length, 1mm plate, 2.3mm ring wire, and 20kg load rating. Designed for heavy modern frames, professional gallery canvas installations, and large contemporary art pieces requiring three-point anchoring.

SpecificationValue
Plate Thickness1 mm
Ring Wire Diameter2.3 mm
Load Capacity20 kg
Total Length63 mm
Plate Width39 mm
Plate Height15 mm
Ring Height22 mm
Screw Hole DiameterN/A (estimated ~4.5mm)
Number of Screw Holes3
MaterialSteel, nickel plated
Is K13 the same as K12 but in silver?Is K13 the same as K12 but in silver?

What picture wire gauge works with K13?What picture wire gauge works with K13?

What picture wire gauge works with K13?

For the 20kg rating, use at least 7-strand braided steel picture wire rated at 20kg or more. Thread through both K13 rings when using pairs for full load distribution.

Is K13 suitable for gallery walls?

Yes. The three-hole design and 20kg load rating make K13 a preferred specification for professional gallery walls with large, heavy contemporary art.

Silver Three-Hole D-Ring Hanger 20kg – Professional Gallery Standard

The Silver Three-Hole D-Ring Hanger 20kg (SKU: K13) is the professional gallery standard for heavy contemporary art installations in nickel-plated silver. With a 63mm total length, 1mm plate, 2.3mm ring wire, and three screw holes rated to 20kg, it delivers triple-anchor security for large-format canvases, heavy modern frames, and any installation requiring long-term stability under dynamic conditions.

Gallery-Grade Performance of the Silver Three-Hole D-Ring Hanger 20kg

The Silver Three-Hole D-Ring Hanger 20kg is specified by professional framers for gallery walls where frames must remain perfectly level over extended periods. The three-hole design, combined with a 2.3mm ring wire and 1mm steel plate, ensures that even under sustained load and environmental vibration, the hanger maintains its position and integrity.

Technical Specifications

Total length: 63mm | Plate: 39mm × 15mm | Thickness: 1mm | Ring wire: 2.3mm | Ring height: 22mm | Holes: 3 | Finish: Nickel plated | Load: 20kg.

Professional Framing Specification

The Silver Three-Hole D-Ring Hanger 20kg is the recommended specification for large contemporary canvas in the 70×100cm to 100×120cm range. For an extended long-plate hanger option, see our K14 Silver 711 Long-Plate 30kg Hanger.

Explore silver three-hole D-ring hangers at Amazon’s three-hole silver frame hangers.

Frequently Asked Questions

Q: Is K13 the same as K12 but silver?
A: Yes — identical specs. K12 is gold; K13 is silver nickel plated.

Q: What picture wire works with K13?
A: 7-strand braided steel wire rated ≥20kg, threaded through both rings.

Q: Is K13 suitable for gallery walls?
A: Yes — three-hole design and 20kg rating make it a preferred gallery specification.
