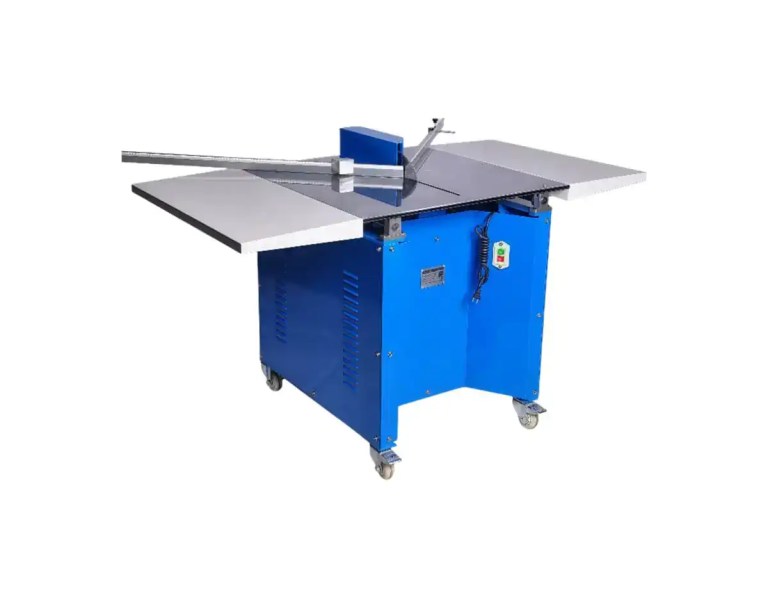

Product Overview
The SC-CT300 Dust-Extraction Miter Cutter is professionally designed for precise picture frame manufacturing. It features an innovative Fixed-Blade, Moving-Table system that ensures smooth cutting for solid wood, MDF, foam, and plaster strips. With its integrated cyclonic dust collection, it solves the industry’s dust hazard problem while delivering accurate cuts across multiple angles.
Product Characteristics
01. Multi-Material Compatibility
Versatile cutting for solid wood, MDF, foam, and plaster molding strips, meeting complex process requirements.
Versatile cutting for solid wood, MDF, foam, and plaster molding strips, meeting complex process requirements.
02. Multi-Angle Flex-Cutting
Precision-engineered for various shapes. Supports cutting angles of 90°, 45°, 67.5°, and 60° (quadrilateral, hexagonal, octagonal frames).
Precision-engineered for various shapes. Supports cutting angles of 90°, 45°, 67.5°, and 60° (quadrilateral, hexagonal, octagonal frames).
03. Fixed-Blade System
Innovative stationary-blade design with motorized table movement. Equipped with premium imported linear guideways for smooth operation.
Innovative stationary-blade design with motorized table movement. Equipped with premium imported linear guideways for smooth operation.
04. 90%+ Dust-Free Operation
Integrated cyclonic dust collection system with high-capacity filtration bags. Achieves over 90% particulate capture rate for a clean workspace.
Integrated cyclonic dust collection system with high-capacity filtration bags. Achieves over 90% particulate capture rate for a clean workspace.
05. Wing Extension Optional
Expand processing capacity with auxiliary wing platforms (sold separately) for handling longer moulding strips.
Expand processing capacity with auxiliary wing platforms (sold separately) for handling longer moulding strips.
Technical Specifications
| Model (SKU) | SC-CT300 |
|---|---|
| Operating Power | 2.2 KW |
| Voltage | 220V / 380V |
| Processing Range (WxH) | 160mm x 100mm |
| Cutting Angles | 90°, 45°, 67.5°, 60° |
| Saw Blade Size | 10″, 12″ |
| Shaft Diameter | 30mm / 25.4mm |
| Machine Dimensions | 750 x 750 x 800 mm |
| Net Weight | 130 kg |
