Designed for deeper frame profiles, this black tall sawtooth bracket offers an extended 43mm reach. It boasts a solid 0.7mm thickness for enhanced durability.
Designed for deeper frame profiles, this black tall sawtooth bracket offers an extended 43mm reach. It boasts a solid 0.7mm thickness for enhanced durability.

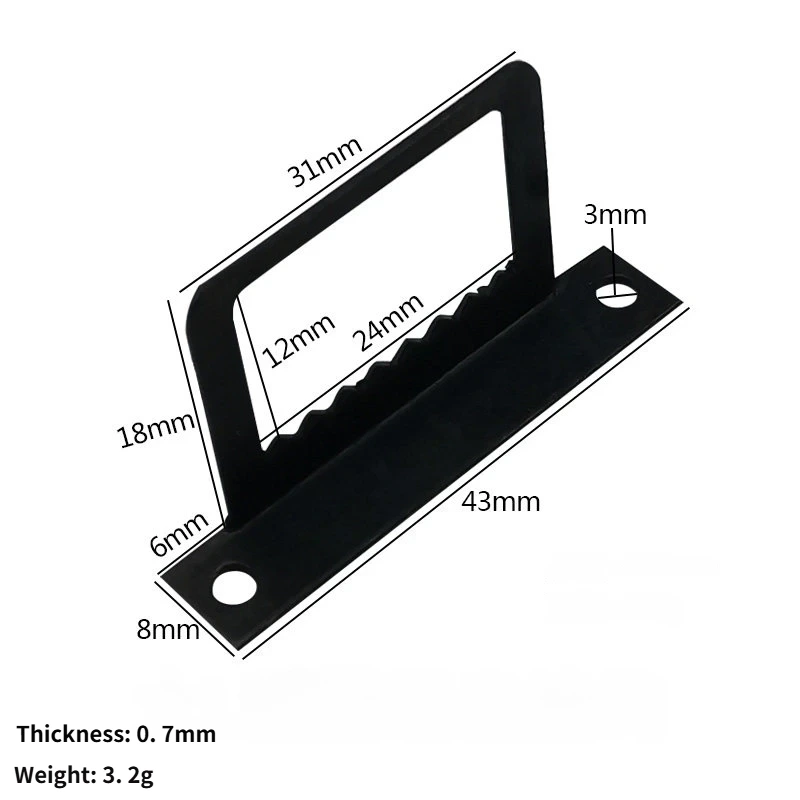

| Specification | Value |
|---|---|
| thickness | 0.7 |
| weight | 3.2 |
| over all length | 43 |
| over all width height | 8 |
| bow/arch height | 18 |
| slot tooth length | 24 |
| slot tooth height | 12 |
| screw hole diameter | oval ~4 |
| screw hole spacing | ~30 |
| material finish | Cold-rolled steel |
| color | Black |
N02 is 35% longer (43 vs 32 mm), 40% heavier-gauge (0.7 vs 0.5 mm), and has a wider tooth slot (24 vs 16 mm), making it suitable for heavier frames.
For frames over 5 kg we recommend using two hangers placed symmetrically, one on each side of the frame back.
The arch rises 18 mm above the base plate; combined with the 6 mm base leg, the total hanger height is approximately 24 mm.
