A compact slim concealed hanger with smaller keyhole slot and 3.5 mm holes, designed for lighter frames and decorative objects where a smaller hardware footprint is preferred.
A compact slim concealed hanger with smaller keyhole slot and 3.5 mm holes, designed for lighter frames and decorative objects where a smaller hardware footprint is preferred.

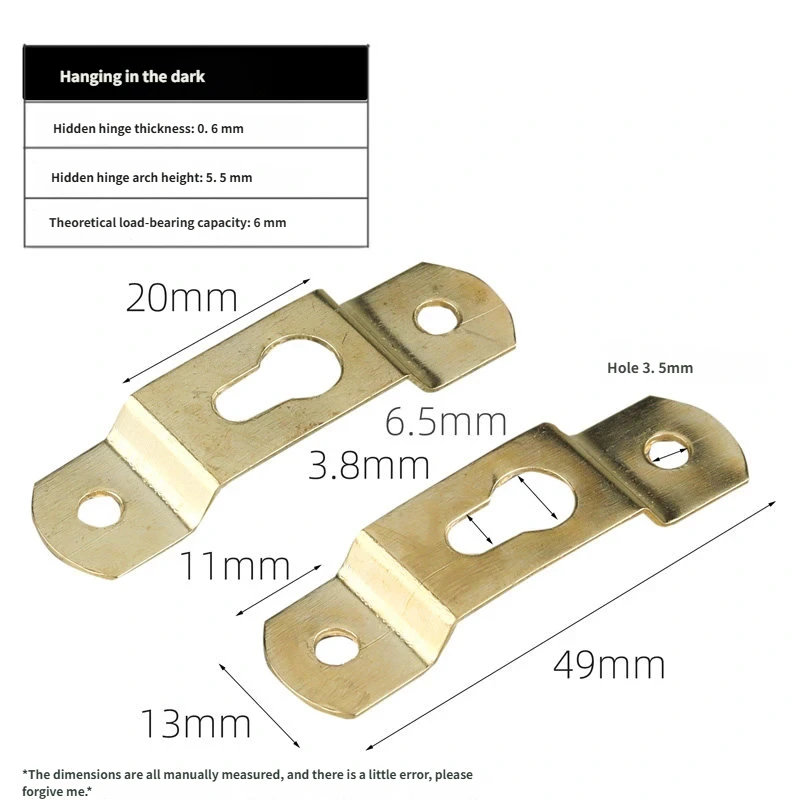

| Specification | Value |
|---|---|
| thickness | 0.6 |
| weight | ~3.5 (est.) |
| over all length | 49 |
| over all width | 13 |
| bow/arch height | 5.5 |
| key hole slot length | 6.5 |
| key hole slot width | 3.8 |
| screw hole diameter | 3.5 |
| no.of screw holes | 4 |
| max load capacity | ~6 (est.) |
| color | Gold |
Use M3.5 or #6 pan-head screws; avoid #8 (4 mm shank) which won't pass through the 3.5 mm holes cleanly.
The 5.5 mm bow height means the frame back must be at least 6 mm thick to properly support the hanger without the screw heads protruding beyond the back surface.
Yes – at 0.6 mm thickness and compact size, it works well on 18–25 mm canvas stretcher bars for a clean no-wire installation.
