Silver Round-Hole L-Bracket Corner Brace 40mm with Screws L48 – 0.7mm

L48-Silver Round-Hole Small L-Bracket Corner Brace 40mm with Screws

SKU: L48

Key Specs

Plate Thickness: Long Arm Length
Long Arm Length: 40 mm
Short Arm Length: 40 mm
Arm Width: N/A
Screw Hole Diameter: 4 mm (standard); 6 mm (large cutout)
Number of Holes: 5 (2 standard 4mm + 1 large 6mm round + 2 small 4mm)
Material: Steel, zinc plated
Includes Screws: Yes – 2× pan-head self-tapping screws included
Inner Step Height: N/A

Request a Quote

MOQ: 100•Lead time: 7-10days•Custom packaging: Available

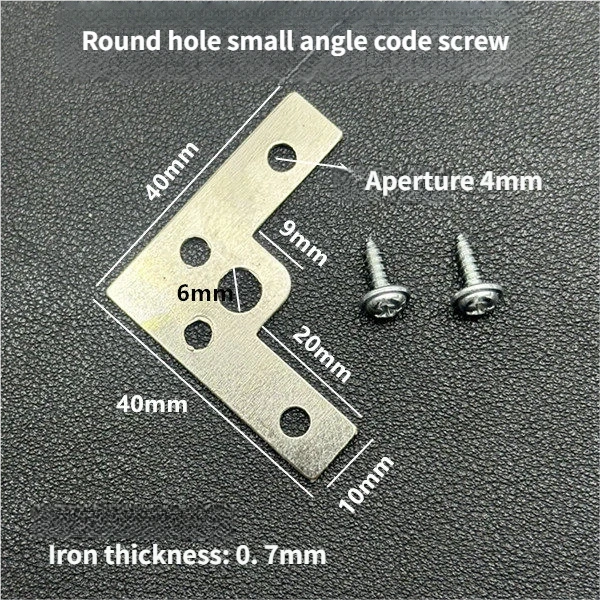

L48 adds 2 pan-head self-tapping screws to the L47’s multi-hole design for a complete ready-to-install package. The unique 40×40mm bracket with 6mm round cutout and 4mm holes in zinc-plated 0.7mm steel can be immediately installed with the included screws for versatile wire-routing and multi-fastener corner joints.

Specification	Value
Plate Thickness	0.7 mm
Long Arm Length	40 mm
Short Arm Length	40 mm
Arm Width	N/A
Screw Hole Diameter	4 mm (standard); 6 mm (large cutout)
Number of Holes	5 (2 standard 4mm + 1 large 6mm round + 2 small 4mm)
Material	Steel, zinc plated
Includes Screws	Yes – 2× pan-head self-tapping screws included
Inner Step Height	N/A

Is L48 identical to L47 except for the included screws?Is L48 identical to L47 except for the included screws?

How do the included screws interact with the 6mm round cutout?

The 2 screws included with L48 are sized for the standard 4mm holes — not the 6mm cutout. The large cutout remains available for wire routing, cable ties, or additional custom fasteners.

What load can L48 support?

Based on the 0.7mm plate and 40mm arm specifications, L48 is suitable for medium-weight picture frames and canvas works. For heavy-duty corner reinforcement, consider the 1.2mm thick L35 or L36.

Silver Round-Hole L-Bracket Corner Brace 40mm with Screws – Complete Multi-Hole Corner Kit

The Silver Round-Hole L-Bracket Corner Brace 40mm with Screws (SKU: L48) is the screw-inclusive version of L47, delivering the complete installation package for versatile multi-hole corner joinery. The 40×40mm, 0.7mm zinc-plated bracket with its distinctive 6mm round cutout and 4mm standard holes ships with 2 pan-head self-tapping screws for immediate, no-additional-hardware installation.

Immediate Versatility: Silver Round-Hole L-Bracket Corner Brace 40mm with Screws

The Silver Round-Hole L-Bracket Corner Brace 40mm with Screws combines structural corner bracing with wire-routing capability from the moment it is unpackaged. Install the bracket with the 2 included screws through the 4mm holes, then route picture hanging wire, cable management ties, or secondary fasteners through the 6mm round cutout — all without requiring any additional hardware beyond what is included.

Specifications

Installation and Alternatives

The Silver Round-Hole L-Bracket Corner Brace 40mm with Screws is installed in the same manner as standard L-brackets, with the added step of routing wire or other elements through the 6mm cutout as required. For the next design variant, see our L49 Silver Cross-Slot 45mm Bracket. Browse round-hole L-brackets at Amazon’s round-hole corner brace kits.

FAQ

Q: Same as L47 with screws?
A: Yes — identical bracket plus 2 self-tapping screws for the 4mm holes.

Q: Do screws fit the 6mm cutout?
A: No — screws are for 4mm holes. The 6mm cutout stays free for wire/cable/custom fasteners.

Q: Load capacity?
A: Medium-weight frames. For heavy-duty use, step up to L35/L36 (1.2mm plate).
