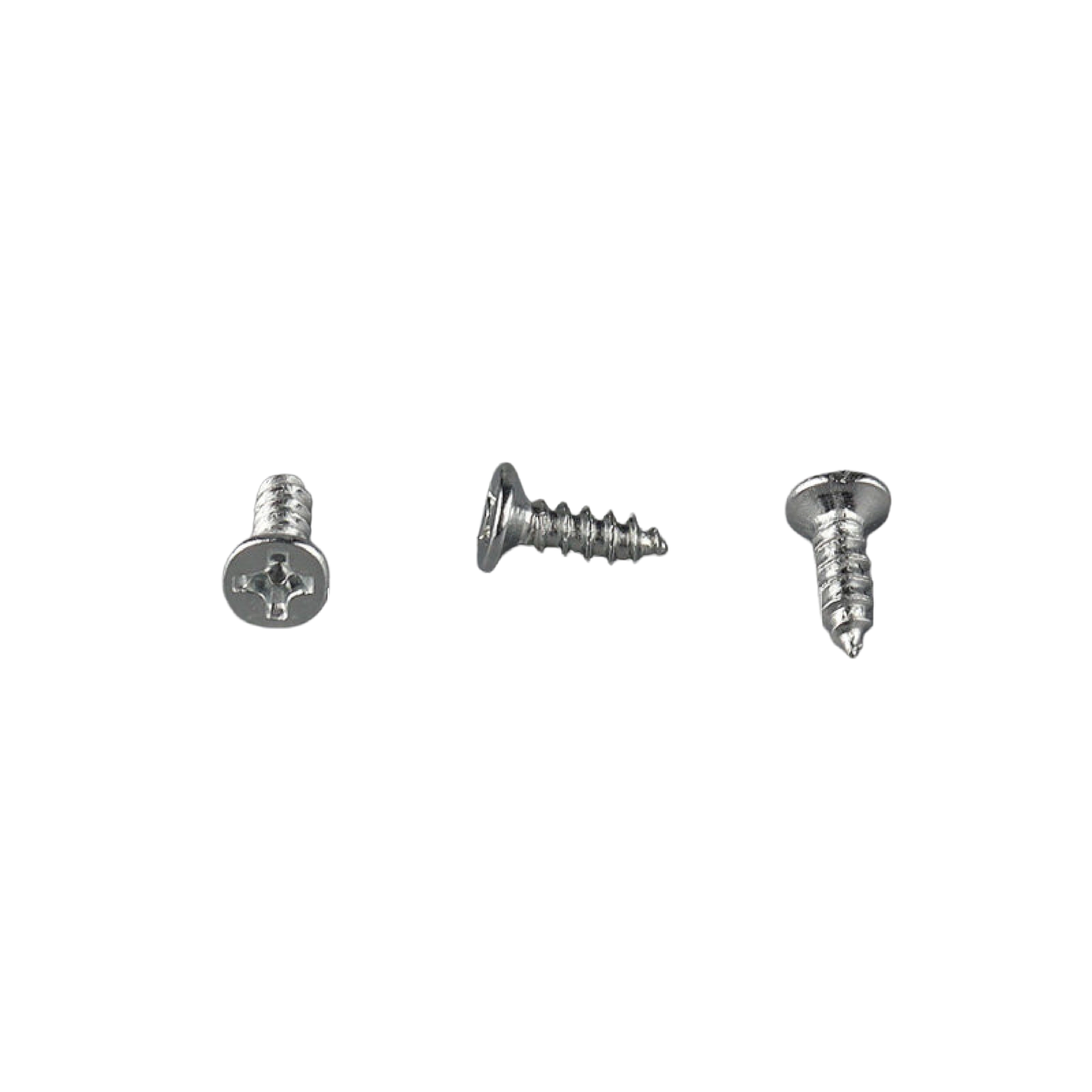

The Silver Flat Head Self-Tapping Screw 3x10mm is a professional-grade picture frame fastener manufactured exclusively for the framing industry. Every Silver Flat Head Self-Tapping Screw 3x10mm unit leaving our production line is inspected for dimensional accuracy, ensuring consistent performance across high-volume frame assembly operations.
Product Specifications: Silver Flat Head Self-Tapping Screw 3x10mm
Understanding the exact dimensions of the Silver Flat Head Self-Tapping Screw 3x10mm ensures correct selection for your specific moulding thickness and finish requirements. This fastener features a 3 mm thread diameter, a 10 mm threaded shank length, and a 5 mm Flat / Countersunk Head (平头) — all finished in silver (Carbon Steel, Zinc-plated (Silver)). It is engineered as a self-tapping screw, eliminating the need for pre-tapped holes in wood and foam board substrates.
Key Technical Parameters
Thread Diameter: 3 mm | Thread Length: 10 mm | Head Diameter: 5 mm | Head Style: Flat / Countersunk Head (平头) | Drive: Phillips | Material: Carbon Steel, Zinc-plated (Silver) | Finish: Silver | Application: Picture frame industry; wood & foam board only.
Why Choose the Silver Flat Head Self-Tapping Screw 3x10mm for Picture Frame Assembly?
Frame makers worldwide trust the Silver Flat Head Self-Tapping Screw 3x10mm because it combines three critical qualities: dimensional precision, finish consistency, and reliable self-tapping performance. In production environments where hundreds of frames are assembled daily, fastener consistency directly impacts throughput and reject rates. The Silver Flat Head Self-Tapping Screw 3x10mm is designed to meet these demands.
The silver finish is matched to industry-standard frame hardware tones, ensuring your corner fixings blend with the overall frame aesthetic. Whether you are producing a single gallery piece or fulfilling a retail chain order, the Silver Flat Head Self-Tapping Screw 3x10mm delivers the same result every time.
Application Guidelines for the Silver Flat Head Self-Tapping Screw 3x10mm
The Silver Flat Head Self-Tapping Screw 3x10mm is approved for use on wood mouldings and foam board substrates only. It is not suitable for steel, aluminium, or general construction applications. For optimal results, drive at low torque using a Phillips #2 bit. In harder woods, a 2.2 mm pilot hole is recommended to prevent splitting and reduce driving resistance.
Compatibility and Selection Guide
Selecting the correct length is critical for joint strength. The 10 mm thread length is best matched to moulding wall thicknesses of 6–12 mm. For thinner mouldings, consider the shorter variants in the same series; for thicker frames, the longer options are available in the XKY Framing catalogue.
Visit our related framing screws page to explore compatible variants. For industry standards and fastener specifications, the ISO fastener standards portal provides authoritative reference material.
Ordering and Availability
The Silver Flat Head Self-Tapping Screw 3x10mm (SKU: V14) is stocked as a standard product. Bulk packaging is available for high-volume frame manufacturers. Contact XKY Framing customer service for volume pricing and lead times. All orders are subject to our standard framing hardware quality guarantee.
Frequently Asked Questions About the Silver Flat Head Self-Tapping Screw 3x10mm
Q: What is the best use case for the 10mm flat-head screw?
A: It excels in standard picture frame corner joints where moulding wall thickness is 8–12mm and a flush-finished interior corner is desired.
Q: Can I use this for attaching D-ring hangers inside frames?
A: D-ring hangers typically require 3–4mm machine screws. This self-tapping screw is not recommended for metal-to-metal hanger attachment.
Q: How does the 5mm head diameter compare to the washer-head series?
A: The flat head at 5mm sits flush/countersunk, while the 7mm washer head sits proud on the surface and distributes load. Choose flat-head for invisible interior fixings.
