Silver Heavy Duty Large D-Ring Hanger 50kg – Industrial Strength for Large Art
The Silver Heavy Duty Large D-Ring Hanger 50kg (SKU: K07) is XKY Framing’s professional-grade solution for large, heavy frames and wall mirrors. Rated at a theoretical 50kg load, this nickel-plated hanger features a 54mm total length, 1mm thick steel plate, 2.3mm ring wire, and dual 4.8mm screw holes that anchor the hanger firmly to any substantial frame.
Engineering Behind the Silver Heavy Duty Large D-Ring Hanger 50kg
The Silver Heavy Duty Large D-Ring Hanger 50kg achieves its exceptional rating through a combination of heavy-gauge components: the 1mm plate resists bending, the 2.3mm ring wire handles significant tensile load without deforming, and the two 4.8mm holes spread mounting stress across a 33mm-wide base. This multi-element design makes K07 suitable for museum-quality frame installations.
Full Technical Specifications

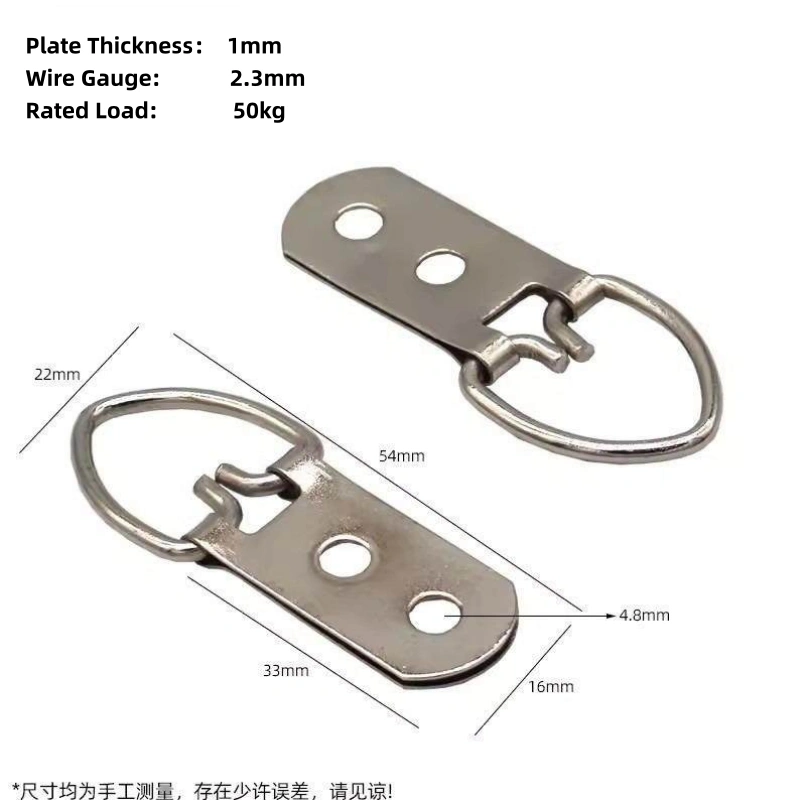

Total length: 54mm | Plate: 33mm × 16mm | Plate thickness: 1mm | Ring wire diameter: 2.3mm | Ring height: 22mm | Screw hole diameter: 4.8mm (×2) | Finish: Nickel plated | Load: 50kg.
Professional Installation Guidance
For the Silver Heavy Duty Large D-Ring Hanger 50kg, always mount into wall studs or heavy-duty masonry anchors rated ≥50kg. Use No.10 or No.12 screws with at least 25mm penetration depth. For the gold-finish version, visit our K08 Gold Heavy Duty Hanger.
Find professional-grade D-ring hangers at Amazon’s heavy duty D-ring frame hangers.
Frequently Asked Questions
Q: How does K07 achieve a 50kg rating?
A: 1mm plate + 2.3mm ring wire + dual 4.8mm screw holes across a 33mm base.
Q: What wall anchors are recommended?
A: Wall studs or heavy-duty expansion anchors rated ≥50kg. Use No.10–No.12 screws.
Q: Is K07 available in gold?
A: Yes — K08 is the gold version with identical specifications.
