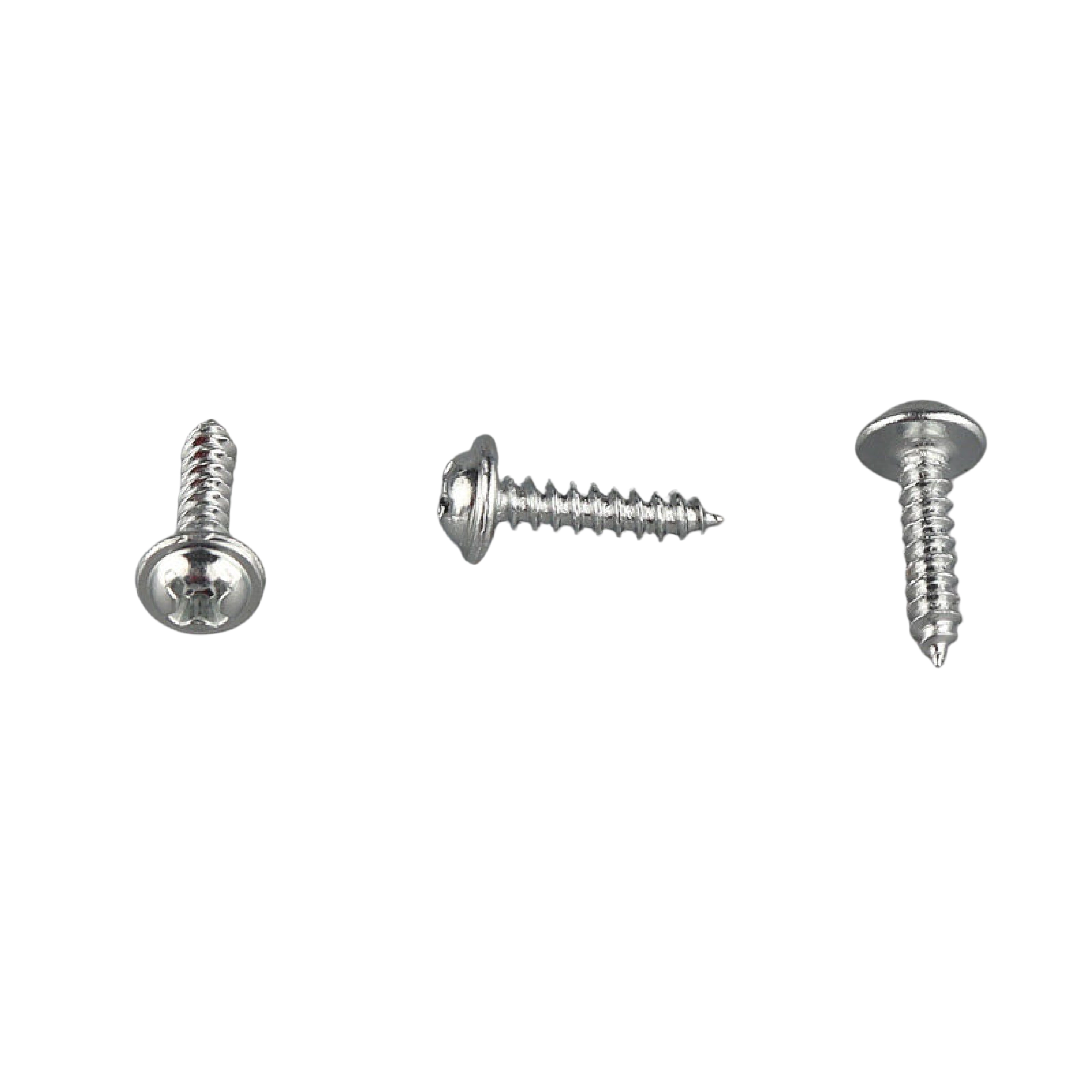

The Silver Washer Head Self-Tapping Screw 3x14mm is a professional-grade picture frame fastener manufactured exclusively for the framing industry. Every Silver Washer Head Self-Tapping Screw 3x14mm unit leaving our production line is inspected for dimensional accuracy, ensuring consistent performance across high-volume frame assembly operations.
Product Specifications: Silver Washer Head Self-Tapping Screw 3x14mm
Understanding the exact dimensions of the Silver Washer Head Self-Tapping Screw 3x14mm ensures correct selection for your specific moulding thickness and finish requirements. This fastener features a 3 mm thread diameter, a 14 mm threaded shank length, and a 7 mm Washer Head (带垫) — all finished in silver (Carbon Steel, Zinc-plated (Silver)). It is engineered as a self-tapping screw, eliminating the need for pre-tapped holes in wood and foam board substrates.
Key Technical Parameters
Thread Diameter: 3 mm | Thread Length: 14 mm | Head Diameter: 7 mm | Head Style: Washer Head (带垫) | Drive: Phillips | Material: Carbon Steel, Zinc-plated (Silver) | Finish: Silver | Application: Picture frame industry; wood & foam board only.
Why Choose the Silver Washer Head Self-Tapping Screw 3x14mm for Picture Frame Assembly?
Frame makers worldwide trust the Silver Washer Head Self-Tapping Screw 3x14mm because it combines three critical qualities: dimensional precision, finish consistency, and reliable self-tapping performance. In production environments where hundreds of frames are assembled daily, fastener consistency directly impacts throughput and reject rates. The Silver Washer Head Self-Tapping Screw 3x14mm is designed to meet these demands.
The silver finish is matched to industry-standard frame hardware tones, ensuring your corner fixings blend with the overall frame aesthetic. Whether you are producing a single gallery piece or fulfilling a retail chain order, the Silver Washer Head Self-Tapping Screw 3x14mm delivers the same result every time.
Application Guidelines for the Silver Washer Head Self-Tapping Screw 3x14mm
The Silver Washer Head Self-Tapping Screw 3x14mm is approved for use on wood mouldings and foam board substrates only. It is not suitable for steel, aluminium, or general construction applications. For optimal results, drive at low torque using a Phillips #2 bit. In harder woods, a 2.2 mm pilot hole is recommended to prevent splitting and reduce driving resistance.
Compatibility and Selection Guide
Selecting the correct length is critical for joint strength. The 14 mm thread length is best matched to moulding wall thicknesses of 10–16 mm. For thinner mouldings, consider the shorter variants in the same series; for thicker frames, the longer options are available in the XKY Framing catalogue.
Visit our related framing screws page to explore compatible variants. For industry standards and fastener specifications, the ISO fastener standards portal provides authoritative reference material.
Ordering and Availability
The Silver Washer Head Self-Tapping Screw 3x14mm (SKU: V09) is stocked as a standard product. Bulk packaging is available for high-volume frame manufacturers. Contact XKY Framing customer service for volume pricing and lead times. All orders are subject to our standard framing hardware quality guarantee.
Frequently Asked Questions About the Silver Washer Head Self-Tapping Screw 3x14mm
Q: What’s the ideal use case for the 14mm length?
A: Best for joining mouldings with combined thickness between 10–14mm, such as wide floater frames or back-to-back shadow boxes.
Q: Can I reuse this screw after removal?
A: Self-tapping screws can be partially re-used, but re-driving into the same hole in soft wood reduces thread grip by up to 40%. Use a new hole when possible.
Q: Does this come with a washer or is the washer integrated?
A: The washer is integrated into the head design (带垫 = with washer/flange), so no separate washer is needed.
About XKY Framing Fasteners
XKY Framing specialises exclusively in the picture frame hardware sector, offering a comprehensive range of self-tapping screws, v-nails, offset clips, and frame-hanging accessories. Every product is designed to meet the specific demands of professional frame makers, ensuring quality and consistency across the entire product range. Explore the full collection at www.xkyframing.com/catalog/.
