Large Metal Turn Button Clip Silver – U06 Complete Guide
The Large Metal Turn Button Clip Silver (SKU: U06) extends XKY Framing’s silver melon-seed clip series to large-format frames. At 25 mm total length with a 9.5 mm wide tail, it delivers confident backing-board retention for frames up to 80 cm span while maintaining an elegant silver appearance.
Why Choose the Large Metal Turn Button Clip Silver?
Large silver or white frames require fasteners that match their aesthetic. Using black clips on a bright frame rabbet can create distracting dark spots visible from the front. The U06 Large Metal Turn Button Clip Silver resolves this by blending seamlessly with light-coloured moulding while providing the holding force of a large-format clip.
Key Dimensions

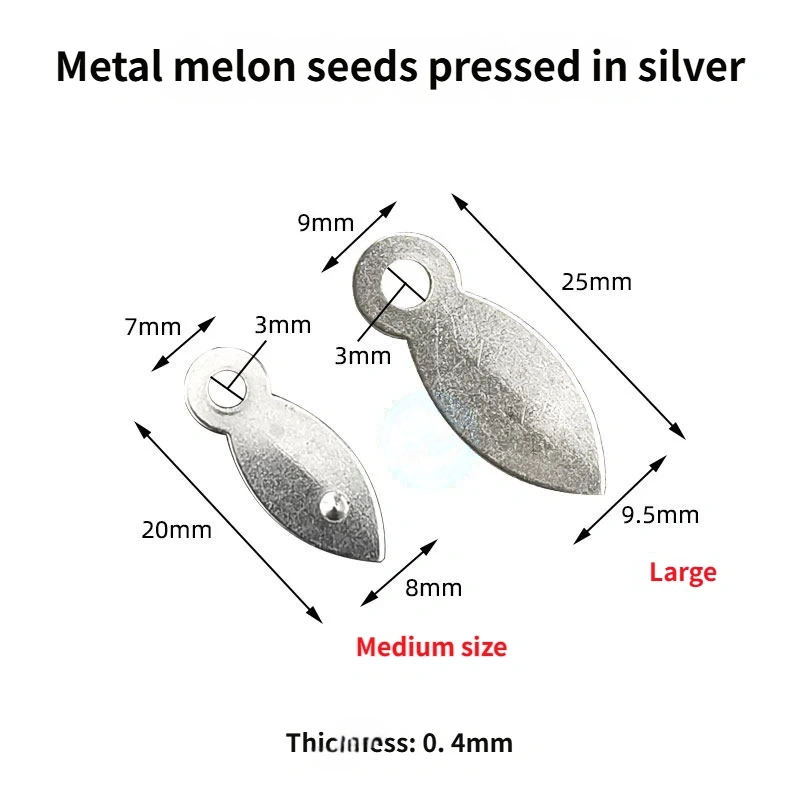

Total length: 25 mm. Head width: 9 mm. Tail width: 9.5 mm. Hole diameter: 3 mm. Thickness: 0.4 mm.
Installation
Position backing board. Align the Large Metal Turn Button Clip Silver over the rabbet. Fasten with M3 screw. Rotate 90° to lock. Use 10+ clips for 80 cm frames.
Related Products
For medium silver clips see U05 Medium Metal Turn Button Clip Silver. For gold clips see U07 Medium Metal Turn Button Clip Gold.
Material & Finish
0.4 mm cold-rolled steel, brushed silver electrophoretic coating, RoHS-compliant.
FAQ
Q: How wide is the tail?
A: 9.5 mm, providing broader locking area than the U05 medium clip.
Q: Can I use U06 on frames up to 80 cm?
A: Yes. Use at least 10 clips evenly spaced.
Q: Does 0.4 mm thickness bend during installation?
A: Slight flex is normal and beneficial — it will not permanently deform under correct torque.
